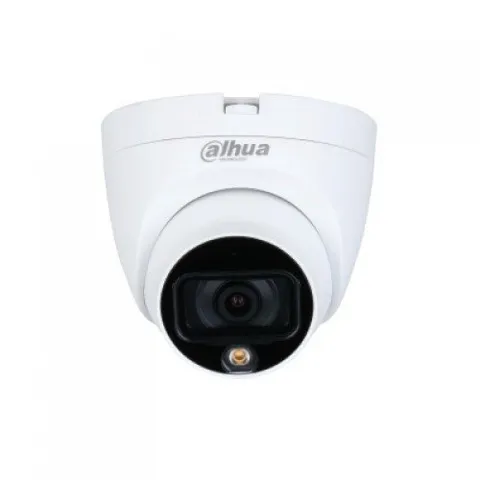

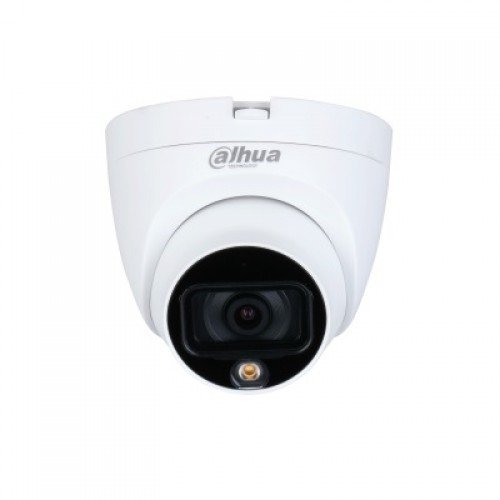

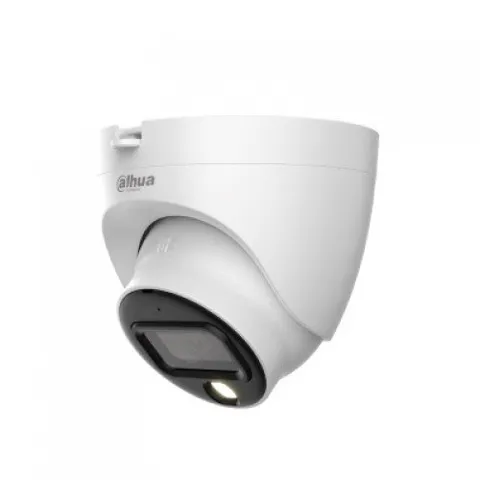

Dahua DH-HAC-HDW1509TLQP-A-LED 5MP Color HDCVI Eyeball Camera
1
Key Features
- Model: DH-HAC-HDW1509TLQP-A-LED
- Max 25 fps@5MP (16:9 video output), IP67 Water Rating
- 120dB true WDR, 3D NR, Built-in mic (-A),
- 24/7 color imaging, 20 m illumination distance
- 3.6 mm fixed lens, Field of View: H: 88; V: 46°; D: 104°
Estimated delivery: Oct 30, 2026 – Nov 3, 2026
Returns & Refunds Policy
Product Specifications
| General Specifications | |
|---|---|
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Casing | Metal inner core + plastic cover + plastic pedestal |
| Power Supply | 12 V ±30% DC |
| Operating Conditions | –40 °C to +55 °C (–40 °F to +131 °F); < 95% (non-condensation) |
| Dimensions | φ97.1 mm × 91.4 mm (φ3.82" × 3.6") |
| Camera | |
| Image Sensor | 5MP CMOS |
| IR Distance | Fixed iris |
| Focal Length | 2.8 mm; 3.6 mm |
| S/N Ratio | > 65 dB |
| Scanning System | Progressive |
| Minimum Illumination | 0.001 Lux/F1.0, 0 Lux warm light on |
| Electronic Shutter Speed | PAL:1/3 s–1/100,000 s NTSC:1/4 s–1/100,000 s |
| Video Features | |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| BLC Mode | BLC/HLC/WDR/HLC-Pro |
| Interface | |
| Audio Interface | One channel built-in mic (-A) |
| Video Interface | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Lens | |
| Lens Type | Fixed lens |
| Angle of View | 2.8 mm: H: 112°; V: 57°; D: 132° 3.6 mm: H: 88; V: 46°; D: 104° |
| Mount Type | M12 |
| Max Aperture | F1.0 |
| Close Focus Distance | 2.8 mm: 1.6 m (5.25 ft); 3.6 mm: 2.3 m (7.5 ft |
| Physical Specification | |
| Weight | Net Weight: 0.24 Kg (0.53 lb) Gross Weight: 0.37 Kg (0.82 lb) |
| Warranty Information | |
| Warranty | 01-year warranty |
What is the price of Dahua DH-HAC-HDW1509TLQP-A-LED 5MP Color HDCVI Eyeball Camera?
The latest price of Dahua DH-HAC-HDW1509TLQP-A-LED 5MP Color HDCVI Eyeball Camera in Bangladesh is ৳4,150. You can buy it at the best price from our website or visit any of our showrooms.
