- Special Price: 7,900৳
- Price: 8,300৳
- Stock: In Stock
- Brand: MSI
- Model: A520M-A Pro
Payment Options
Key Features
- Model: MSI A520M-A Pro
- AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
- PCB with 2OZ Thickened Copper
- Supports up to 4600(OC) MHz RAM
- Core Boost, Turbo M.2 & Audio Boost
| Basic Information | |
| Chipset | AMD B520 |
| Form Factor | Micro-ATX Form Factor | 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
| Connector & Ports | |
| Audio | Realtek ALC892 Codec | 7.1-Channel High Definition Audio |
| DVI-D (s) | 1x DVI-D port, maximum resolution of 1920x1200@60Hz |
| HDMI | 1x HDMI 2.1 port, maximum resolution of 4096x2160 @60Hz |

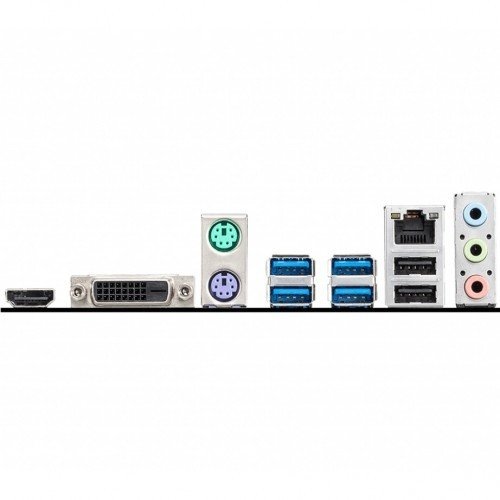

| Internal I/O Ports | 1x 24-pin ATX main power connector | 1x 4-pin ATX 12V power connector | 4x SATA 6Gb/s connectors | 1x M.2 slots (M-Key) | 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | 1x 4-pin CPU fan connector | 1x 4-pin system fan connectors | 1x Front panel audio connector | 2x System panel connectors | 1x Chassis Intrusion connector | 1x Clear CMOS jumper |
| LAN Port (s) | 1x Realtek RTL8111H Gigabit LAN controller |
| TPM (Trusted Platform Module) | 1xTPM module connector |
| USB (s) | AMD A520 Chipset | 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector | 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) | AMD Processor | 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Expansion Slots | |
| M.2 Socket | 1x M.2 slot (Key M) (from AMD Processor) | Supports PCIe 3.0 | Supports SATA 6Gb/s | Supports 2242/ 2260/ 2280 storage devices |
| PCI | 1x PCIe 3.0 x1 slot | 1x PCIe x16 slot |
| Graphics | |
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz | 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz |
| Max Shared Memory | 16GB |
| Memory | |
| Maximum Memory | 64GB |
| Warranty Information | |
| Warranty | 03 Years Warranty |

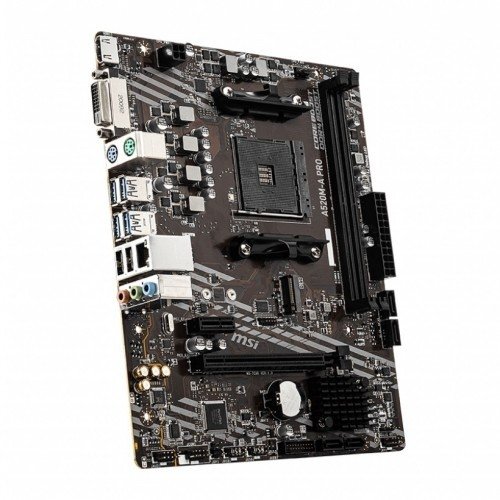

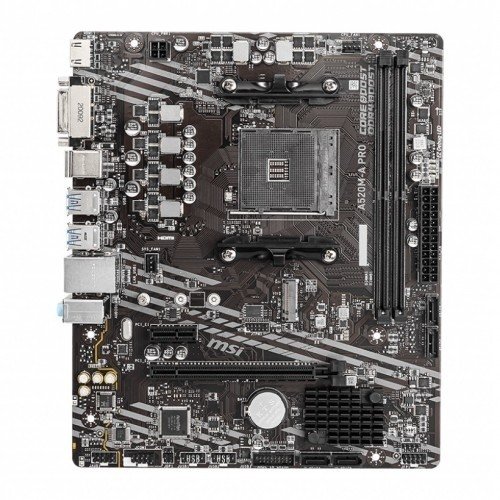

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard
Professional Performance with MSI A520M-A Pro Motherboard
The MSI A520M-A Pro AM4 Micro-ATX motherboard is designed
for professionals who require stability, efficiency, and high performance in
their workflows. This motherboard belongs to MSI's PRO series, which ensures
longevity and hassle-free operations while delivering optimized functionality.
Whether you're a professional or an enthusiast, the A520M-A Pro provides a
seamless experience with advanced features.
Total Fan Control for Efficient Cooling
MSI motherboards are built to manage CPU and system fan
speeds efficiently. With the Total Fan Control feature, users can monitor
primary system characteristics through an intuitive graphical interface.
Additionally, you can set up to four temperature targets for the CPU and
motherboard, allowing the system to adjust fan speeds automatically for optimal
cooling performance.
High-Speed Storage Compatibility
MSI PRO Series motherboards support the latest storage
standards, enabling users to connect ultra-fast storage devices effortlessly.
This compatibility ensures better efficiency, improved responsiveness, and a
seamless workflow for professionals and gamers alike.
Enhanced PCB Design for Overclocking Stability
For those looking to push their system performance further,
the A520M-A Pro comes with an enhanced PCB design featuring 2oz thickened
copper. This increase in conductivity improves heat dissipation, ensuring
greater reliability and stability, especially during overclocking sessions.
Improved Memory Performance with A-XMP Profile
MSI’s OC LAB has optimized memory performance, making it
superior to A320 motherboards. The easy-to-enable A-XMP profile automatically
adjusts power settings to achieve the best memory speed and stability. This
allows for efficient multitasking and improved system responsiveness.
Core Boost Technology for Precision Power Delivery
MSI’s Core Boost technology combines a premium layout with
an optimized power design, ensuring stable and efficient power delivery to the
CPU. This technology not only supports multi-core processors but also creates
an ideal environment for overclocking, providing enhanced performance and
reliability.
What is the Price of MSI A520M-A Pro Motherboard in Bangladesh?
The latest price of the MSI A520M-A Pro Motherboard in
Bangladesh is 7,900৳.
You can purchase it at the best price from Monarch IT through our
website or by visiting any of our showrooms.
Frequently Asked Questions (FAQ)
1. Is the MSI A520M-A Pro motherboard compatible with Ryzen 5000 series processors?
Yes, the MSI A520M-A Pro motherboard supports Ryzen 3000,
4000, and 5000 series processors with an appropriate BIOS update.
2. Does this motherboard support overclocking?
While the A520 chipset does not support CPU overclocking,
you can still enable memory overclocking through the A-XMP profile for better
performance.
3. How many RAM slots does the MSI A520M-A Pro motherboard have?
This motherboard features two DDR4 memory slots,
supporting up to 64GB of RAM with speeds up to 4600MHz (OC).
4. What storage options does this motherboard support?
The MSI A520M-A Pro supports M.2 NVMe SSDs and SATA
SSDs/HDDs, ensuring high-speed storage solutions for your system.
5. Does it come with built-in Wi-Fi?
No, this motherboard does not have built-in Wi-Fi. However,
you can add a Wi-Fi card via the PCIe slot or use a USB Wi-Fi adapter.
6. What are the available display output ports?
The motherboard includes one HDMI and one VGA port,
allowing flexible connectivity for display devices.
